2 Channels Automatic Oil Pour Point Measurement Meter 50℃ ～ -70℃ ASTM D5850

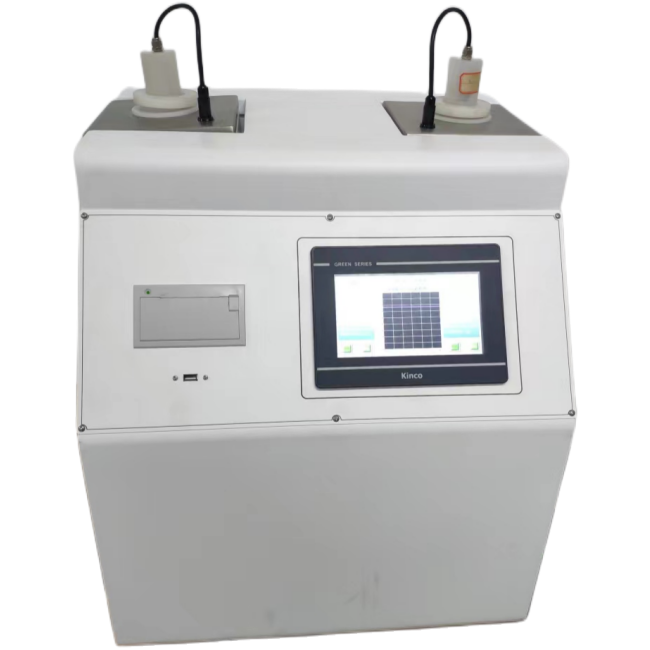

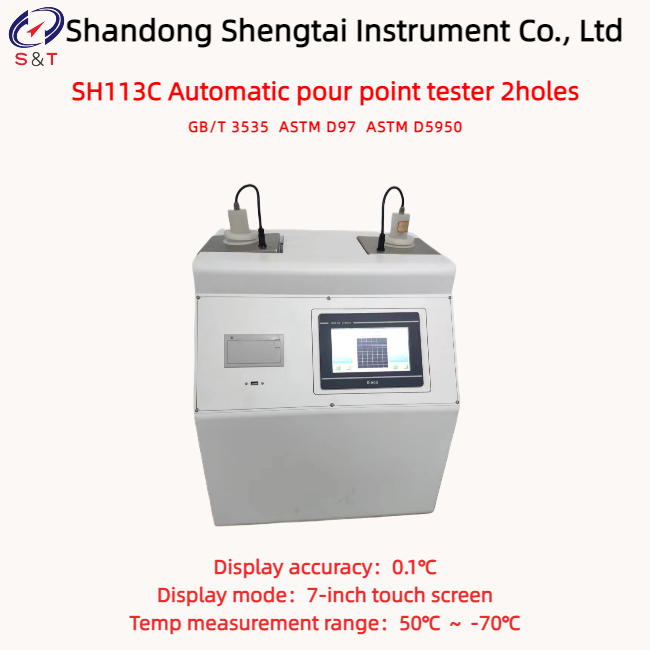

SH113C Automatic pour point tester 2holes

The SH113CL Fully Automatic Pour Point Determinator is designed and manufactured according to the GB/T 3535 method for determining the pour point of petroleum products. It integrates mechanical, optical, electronic, and computer technologies with advanced contemporary techniques to automatically complete the testing of the pour point of petroleum products. This instrument employs photoelectric detection technology, an automatic glass tube tilting method, and an imported compressor-based cooling system to ensure the required cooling depth.

The instrument consists of a cryogenic cooling source (using cascade compression refrigeration technology), an optical detection system, an MPU control system, and dedicated software programs. The cryogenic cooling source employs a miniature cascade compression refrigeration system with fan cooling (eliminating the need for cooling water). It features two relatively independent test bath wells, ensuring simultaneous comparative experiments without mutual interference. The optical detection technology accurately captures the endpoint of experiments and includes parameter correction functions that can be configured based on precision requirements. The instrument utilizes standardized testing procedures, enabling fully automated testing and printing of experimental results without manual intervention.

Product features:

● 90° mechanical automatic operation

● Adopting a color LCD large screen display, a fully Chinese human-machine dialogue interface, and an unmarked keyboard,

● Simulate and track the function curve of temperature and test time.

● Endpoint determination: Optical liquid level detection method.

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
