Fully Automatic Oil Smoke Point Meter Wavelength 380nm～ 780nm RT ～ 400 ℃ GB/T 20795

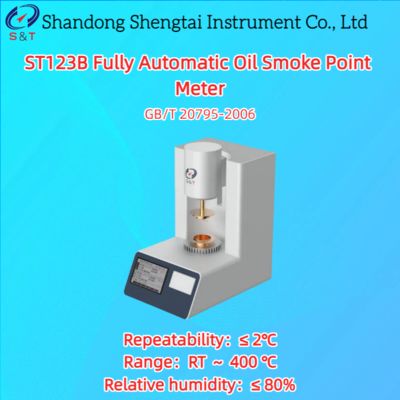

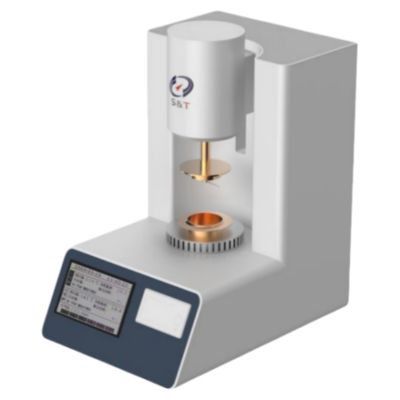

ST123B Fully Automatic Oil Smoke Point Meter

The ST-123B fully automatic oil smoke point meter is designed and manufactured according to the requirements of the first automatic method specified in the Chinese standard GB/T 20795-2006 "Determination of Smoke Point of Plant Oils and Fats", and is suitable for the methods specified in this standard.

This instrument adopts microcontroller control technology, color LCD display screen, fully Chinese human-machine dialogue interface, and unmarked keyboard; It has menu prompts and guided input functions for parameters such as predictable smoke point temperature, sample label, and test date; By utilizing integrated software and modular structural design technologies, the smoke point value of vegetable oil can be automatically measured, and experimental results can be automatically displayed and printed.

This instrument is designed with advanced technology, user-friendly interface, easy operation, and accurate test results. It is an ideal substitute for similar imported instruments and can be widely used in scientific research, universities, edible oils, industries, colleges and universities, research institutes, metrology and testing departments, and other units for detecting and testing the smoke point of vegetable oil products.

Instrument features:

Main technical indicators and parameters:

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Remote upgrade: Equipped with TCP network transmission function, software can be remotely upgraded later

● Temperature display: Real time display of heating furnace plate temperature and real-time display of sample temperature

● Can store data on a microcomputer, and can also be equipped with a USB flash drive to output data to a PC for long-term storage

● Overheating protection: Equipped with a safety temperature setting function, the room temperature can be freely set between 300 ℃. If the heating temperature exceeds the set safety temperature, the instrument can automatically stop the experiment and immediately blow air to dissipate heat

★ It has a date and password setting function. Optional

★ Equipped with RS232, RS485, Ethernet and other interfaces (optional)

★ Input extension: barcode scanner can be selected to scan and input sample number and other information (optional)

★ Output Extension: Printer interface, compatible with HP1108 laser printer, capable of printing A4 experimental reports (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
