Round Flour Checking Sieve Speed 260r/Min Grain And Oil Tining 0-15min GB/T5507

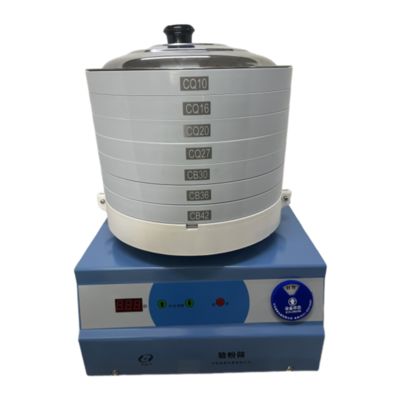

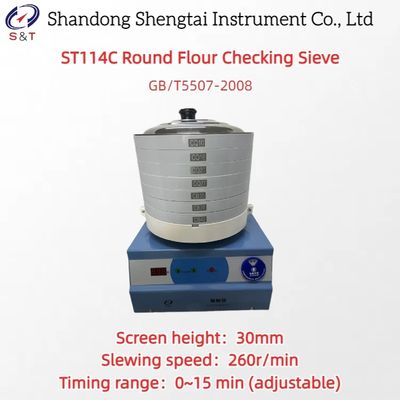

ST114C Round Flour Checking Sieve

ST114C round powder sieve is based on the requirements of the national standard GB/T 5507-2008 "determination of grain and oil inspection powder coarseness". Its principle is that samples are sieved on sieves of different specifications, samples of different particles are separated from each other, and the grain coarseness is calculated according to the residue on the sieve.

In the structure, the worm gear with stable center of gravity and high precision is selected as the variable speed drive, and the plane rotary motion is made through the eccentric connecting rod mechanism. The pressing rod seat integrated with the tray makes the screen more firmly fixed. The electronic timer controlled by single chip microcomputer has high timing accuracy and easy operation. It can realize time setting, working timing, emergency stop, automatic reset and other functions. The soft film key switch is used to extend the service life of the instrument. The technical indicators of the instrument fully meet the requirements of the new national standard GB/|T 5507-2008. It is a necessary inspection equipment for grain and oil quality inspection stations at all levels, product quality inspection institutes of quality and technical supervision bureaus, and grain processing plants to measure the powder thickness.

Technical specifications :

ST114C powder sieve

Note: The appearance picture, size, volume and weight of the instrument are for reference only. If the instrument is updated, there may be some changes without further notice.

Screen parameters

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instruments and materials provided are brand-new goods that meet the national quality standards and have the manufacturer's certificate;

----The materials and main components provided meet the technical requirements specified in the technical data;

----The warranty period of the complete equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of the instrument quality problems during the warranty period. Due to the equipment failure caused by the user, we are responsible for the maintenance and reasonable charge.

----The equipment is provided with spare parts at a lifetime discount, and the whole machine is maintained and repaired for life.

----After the expiration of the warranty period, when the user needs maintenance and technical services, we only charge the cost.

Packing list:
