Automatic Palmitic Acid Freezing Point Tester -30 ℃ ~ +80 ℃ Air-Cooled ChP 0631

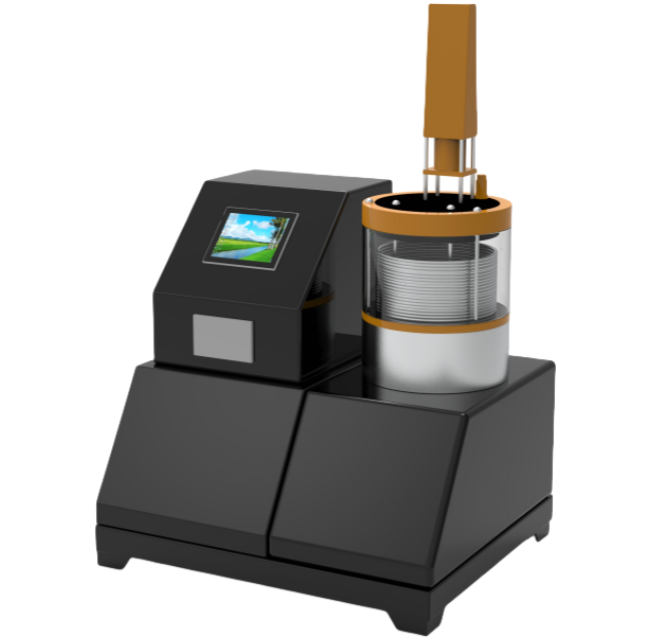

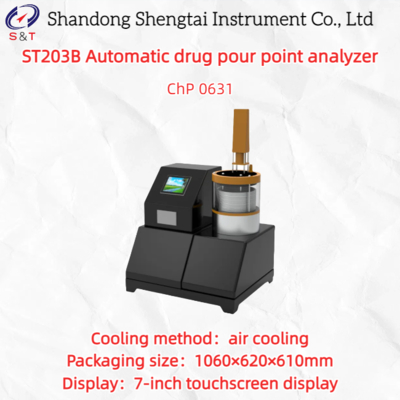

ST203B Automatic drug pour point analyzer

The ST203B automatic drug pour point analyzer is designed and manufactured according to the 2025 Chinese Pharmacopoeia General Rule 0613 pour point determination method. Suitable for determining the pour point of medicinal liquids. Determine the maximum temperature at which a drug remains unchanged in a short period of time when it solidifies from a liquid. Some drugs have a certain pour point and purity change, and the pour point also changes accordingly. The determination of pour point can distinguish or check the purity level of drugs.

Technical parameters:

● Power supply: AC220V±10% 50Hz

● Working cold bath: double-layer vacuum glass bath

● Cooling method: Compressor cooling

● Cooling method: air cooling

● Display: 7-inch touchscreen display

● Temp control accuracy: ± 0.1 ℃ (customizable ± 0.01 ℃)

● Cold bath temp control: -30 ℃~+80 ℃ (customizable -80 ℃~200 ℃)

● Bath liquid stirring: automatic mixing by mixing motor  Power 6W  Speed 1200r/min

● Refrigeration system: new refrigeration compressor.

● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.

● Sample mixing: synchronous speed reduction motor, 60 times / minute

● It adopts the embedded control system design, automatic detection and automatic printing in the whole process of the test

● 7 inch color touch screen; It can store the test results; Historical data can be viewed

● Storage method:The experimental results can store 1999 sets of historical data for easy retrieval;

● Result output:It can also be equipped with a USB drive output function to output to the computer for long-term storage

● Output format:The output format of the result USB drive is CSV or Excel.

● Standard printing:Standard micro printer with automatic measurement and needle printing (optional A4 printing)

● Account management:Audit tracking function and hierarchical account management, with the ability to perform 3-level account management (optional).

● Data Management:Can be connected to the LIMS system (optional)

● Data Extension:Audit Tracking Function (optional)

● Instrument size:950*500*510mm

● Instrument weight:48.83kg

● Packaging size:1060×620×610mm

● Weight:62kg

Low temperature bath requires thermal conductive medium: dimethyl silicone oil (optional) 6L

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
